Transforming Utility-Scale Solar Construction with Intelligent Robotics
As utility-scale solar projects continue to expand globally, construction quality and installation consistency have become increasingly important factors affecting project delivery, long-term performance, and maintenance efficiency.
Traditional solar panel installation still relies heavily on manual positioning and visual alignment. On large-scale solar farms, workers must repeatedly adjust module placement under challenging outdoor conditions, where factors such as uneven terrain, structural deviations, and changing sunlight conditions can significantly impact installation accuracy.
To address these challenges, Relu Robotics has developed a new generation of solar installation robots equipped with a fully self-developed 3D vision perception system, enabling precise module positioning and standardized installation for utility-scale photovoltaic projects.
Unpredictable Outdoor Conditions Affect Installation Accuracy
Utility-scale solar farms are typically built in open environments where lighting conditions can change dramatically throughout the day.
Examples include:
- Strong direct sunlight exceeding 100,000 lux at midday
- Low-angle sunlight and backlighting during morning and evening
- Shadows caused by structures and surrounding environments
These conditions can reduce the reliability of traditional vision systems and increase the difficulty of manual alignment.
At the same time, manual installation methods may result in:
- Inconsistent module spacing
- Uneven module height alignment
- Variations caused by worker experience
- Lower construction standardization
Although these differences may appear minor during installation, they can impact:
- Overall solar farm appearance
- Construction acceptance standards
- Future inspection and maintenance efficiency
Relu’s Self-Developed 3D Vision Perception System
Intelligent Environmental Understanding for Precise Solar Installation

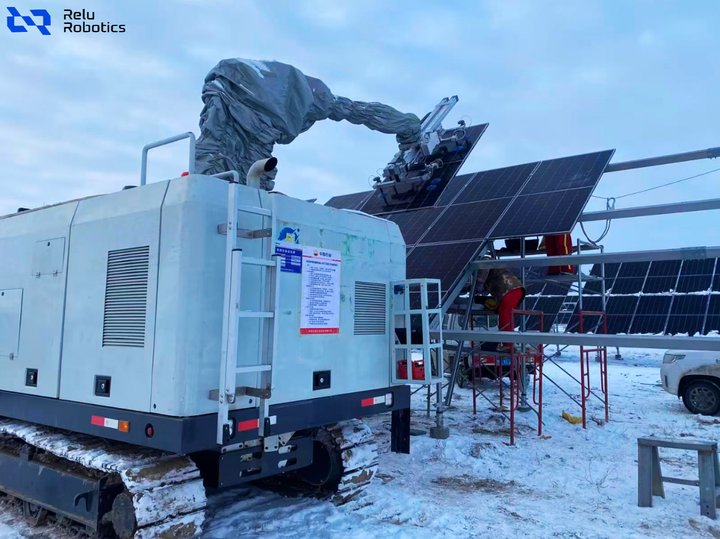

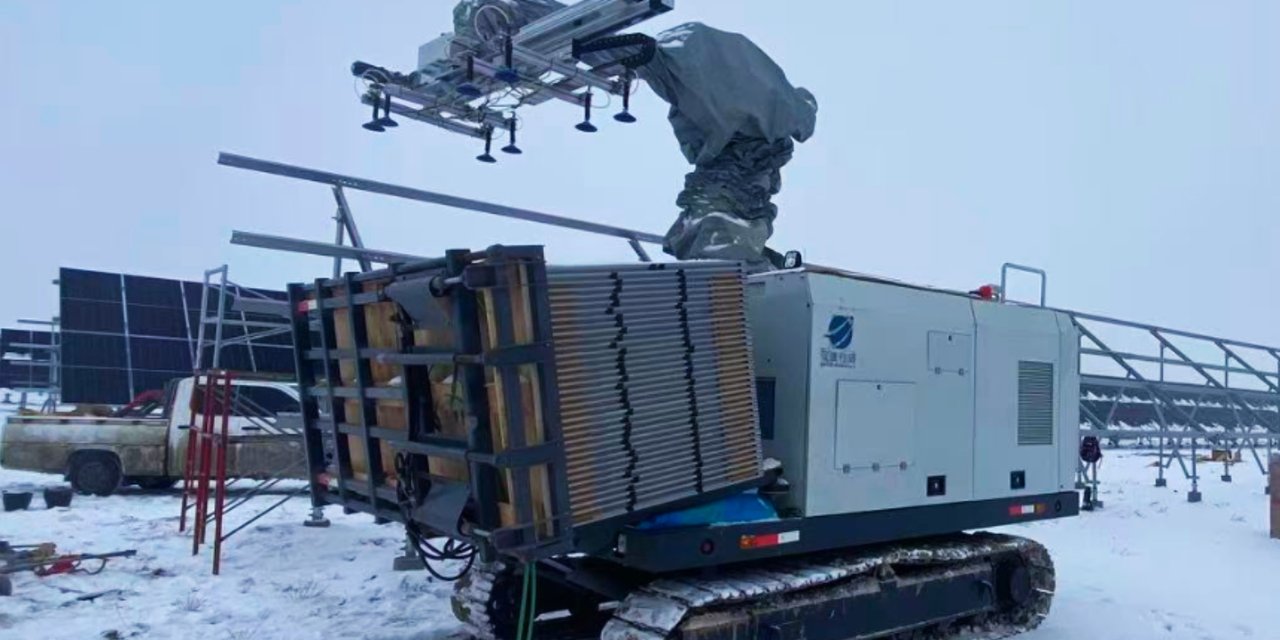

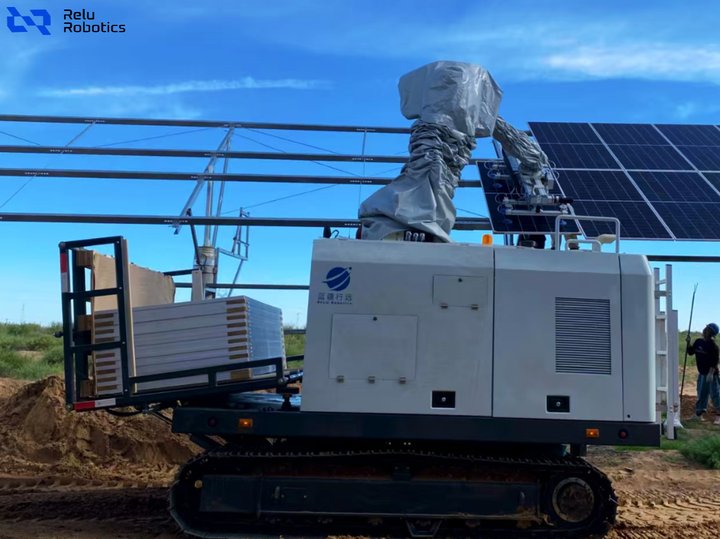

Relu Bison Series Solar Installation Robots are equipped with a proprietary full-stack 3D environmental perception system, designed specifically for complex outdoor photovoltaic construction environments.
By combining:
- 3D spatial perception technology
- Topological alignment algorithms
- Virtual super-resolution processing
- Real-time environment reconstruction
the system enables robots to accurately understand solar mounting structures, terrain variations, and installation conditions before placing each module
Reliable Performance Under Extreme Lighting Conditions
Unlike conventional visual recognition solutions that may suffer from overexposure under strong sunlight, Relu’s vision system is designed to maintain stable perception performance in outdoor environments.
The system can operate under:
Up to 100,000 lux outdoor lighting conditions
while continuously identifying:
- PV mounting structures
- Module positioning points
- Structural deviations
- Terrain changes
This allows the robot to maintain stable operation from sunrise to sunset across different project environments.

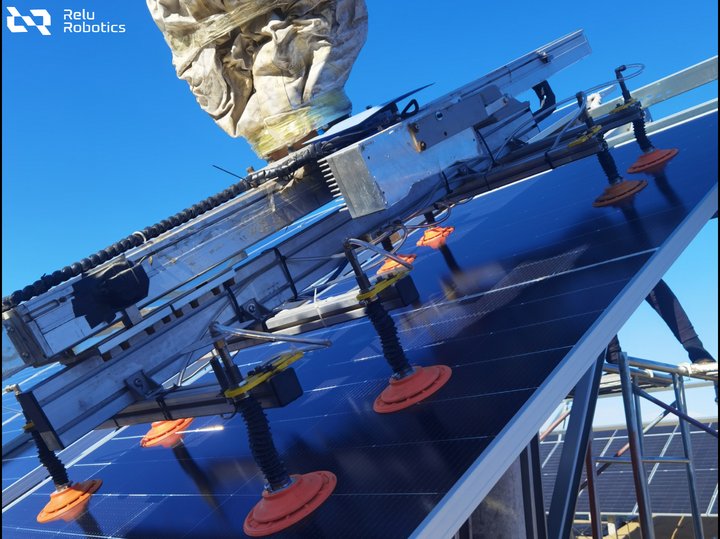

Millimeter-Level Installation Accuracy
Precision is one of the key advantages of robotic solar installation.
Relu’s 3D vision system achieves:
- <3 mm spatial perception accuracy
- ≤5 mm solar module installation accuracy
- <0.5° mounting angle recognition error
During operation, the robot automatically adjusts placement positions based on real-time environmental data, compensating for:
- Minor structural deviations
- Uneven ground conditions
- Installation tolerances
As a result, solar modules can be installed with consistent:
- Spacing
- Height alignment
- Overall layout uniformity

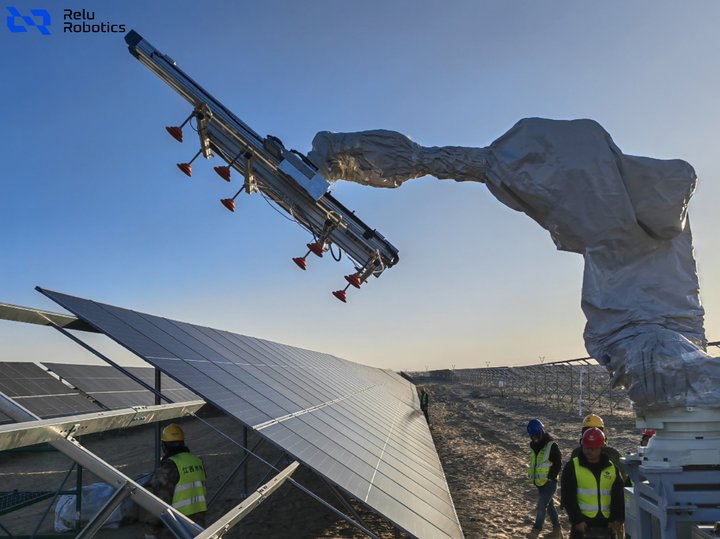

The Future of Solar Installation Is Intelligent and Precise
As solar farms become larger and construction requirements become more demanding, automation will play an increasingly important role in photovoltaic project development.
With advanced 3D vision perception, AI algorithms, and robotic automation, Relu Robotics is helping transform solar construction from manual installation toward a smarter, more standardized, and more efficient future.
The future of solar installation is not replacing workers ，it is empowering them with intelligent tools.
